BMW Manufacturing Opens First Press Shop in North America

24 Jun 2024  by greencarcongress
BMW Manufacturing opened its new press shop at the Spartanburg, South Carolina, plant as it prepares to assemble the new BMW X3 Sports Activity Vehicle (earlier post). The press shop will stamp sheet metal parts for the new BMW X3, which made its North American debut during the ceremony. These components include hang-on parts such as the vehicle’s four doors, fenders, lift gate, and exterior body sides.

After 30 years of successful operations, we are further expanding our commitment. At the end of 2026, assembly of all-electric Sports Activity Vehicles will start here in Spartanburg. This is a further step towards strengthening our global resilience.

—Dr. Milan Nedeljković, member of the Board of Management of BMW AG responsible for Production

By 2030, the BMW Group will assemble at least six fully electric models in the US. The high-voltage batteries for the future BEVs from Spartanburg will come from nearby Woodruff, where the BMW Group is currently building an assembly plant for sixth-generation batteries. The opening of the press shop also contributes to strengthening the US footprint.

The BMW Group invested more than $200 million to construct the 219,000-square-foot press shop. It took 24 months from site work preparation to stamping the first part on the press line. The investment also included more than 200 new jobs in careers such as tool and die technicians as well as electrical and mechanical maintenance for automated machinery. Dozens of Plant Spartanburg associates trained at BMW Group press shops in Swindon in the UK and Leipzig in Germany.

The BMW X3 is one of the company’s best-selling vehicles in the United States and worldwide. Plant Spartanburg associates have assembled more than 1.7 million BMW X3s since the model joined the plant’s lineup in 2010. The new BMW X3 will go on sale in the fall of 2024.

The press shop marks the beginning of the automotive production process. Large steel coils are unloaded from trucks using a large overhead crane inside the shop. The steel coils are then fed into the Coil Line, where the steel is cut into individual “blanks” (rectangular cutoffs or special shapes) at up to 70 strokes per minute. These blanks are then ready to be fed into the Press Line.

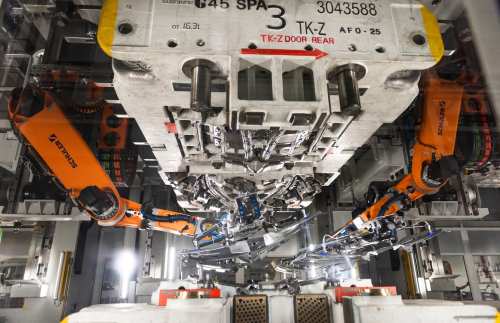

The Press Line consists of five press (stamping) stations. The line is equipped with servo technology, which enables BMW to increase the output performance of the presses significantly. An overhead crane moves the correct press tool (die) into each station. The blank is fed into the first press station and transferred from one station to the next by a robot-like automation technology, referred to as the “crossbar feeder,” for additional forming and trimming operations. The line can run up to 18 strokes per minute, which means up to 10,000 parts can be stamped each day, depending on the size of each part.

After the parts are stamped, they go to quality control for inspection; quality inspectors use special lighting that mimics natural daylight. Parts are then stacked into racks ready for delivery to the body shop production line.

Underneath both the press and coil lines are areas that collect the scrap metal gathered after the parts are stamped. As much as 50 tons of scrap are accumulated each day at full volume; a long conveyor moves the scrap, and it is loaded onto 53-foot trailers. All this material is taken off-site to be recycled.

This year, BMW Manufacturing marks 30 years of assembling BMWs in South Carolina, with more than 6.7 million BMWs assembled during the three decades. The Spartanburg factory employs more than 11,000 people to assemble the X3, X5, X7 and XM Sports Activity Vehicles and the X4 and X6 Sports Activity Coupes. The 1,150-acre, 8-million-square-foot campus includes three body shops with more than 2,600 robots, two paint shops, and two assembly halls.

The plant generates about 20% of its own power from methane gas and uses hydrogen fuel cell technology to power about 800 pieces of material handling equipment.

The BMW Group announced in 2022 that it would invest $1.7 billion in its US
